The OV7670 is a low-cost 0.3-megapixel CMOS color camera module capable of outputting a maximum VGA resolution (640x480) at 30 frames per second. It communicates via an SCCB interface (compatible with I2C) for configuration and uses a parallel digital port for pixel data.
- Supports: VGA, CIF, and from CIF to 40 x 30 The Size
- Rawrgb to RGB (GRB4: 2: 2, RGB565/555/444), YUV (4: 2: 2) and YCbCr (4: 2: 2) output format
- Standard SCCB interface compatible with I2 °C interface
- Low voltage suitable for embedded applications
- High sensitivity for low light applications
Key Specifications
- Resolution: 640 x 480 VGA (supports CIF, QVGA, and lower)
- Operating Voltage: 3.3V (typically has an onboard LDO regulator)
- Output Formats: YUV/YCbCr 4:2:2, RGB 565/555/444, and Raw RGB data
- Max Frame Rate: 30 fps
- Lens Size: 1/6 inch
Pinout and Connections
- SIOC / SIOD: Serial Clock and Serial Data lines for the SCCB (I2C) control interface.
- VSYNC / HREF / PCLK: Vertical sync, horizontal reference, and pixel clock output signals for data synchronization.
- D0–D7: 8-bit parallel data output ports.
- XCLK: External clock input required to drive the sensor.
- PWDN / RESET: Power down and reset control lines

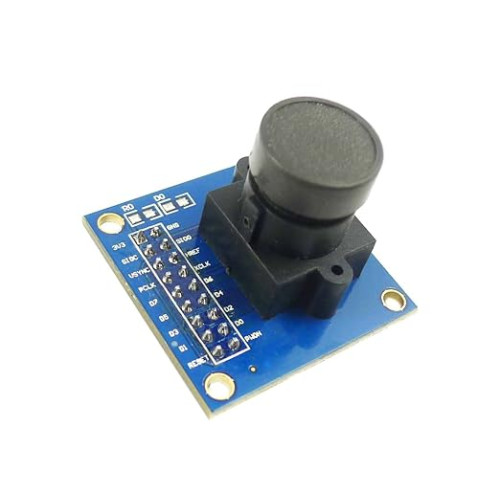

OV7670 CMOS Camera Module
- Product Code: OV7670
- Availability: In Stock
-
R 28.75
- Ex Tax: R 25.00
Tags: OV7670 CMOS Camera Module, OV7670, CMOS camera, camera module, camera
