Product Specifications

• Dimensions: 220mm x 125mm x 51.5mm (8.66"L x 4.92" W x 2.03"H)
• Material: Clear anodized extruded aluminium body with two black plastic and panels aind integrated bezels
• Designed for: Standard eurocards and internal horizontal sliding slots for 120mm wide printed circuit boards (PCBs)
• IP Rating: IP54 dust and water resistance
• Features: Includes a slide-removable aluminium "belly" plate on the bottom for easy component access, screws, and self-adhesive rubber feet.

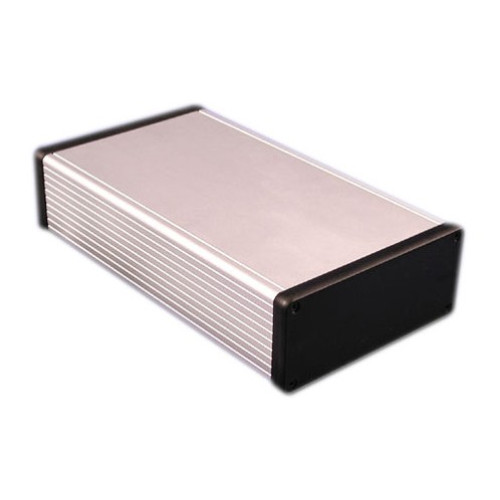

Hammond Manufacturing 1455 Aluminium PCB Enclosures are designed to house PC Boards or for equipment interfacing. They are sized for standard Eurocards, PC Boards mount horizontally by sliding into internal slots extruded into the enclosure body. The enclosures have a rugged body constructed from extruded aluminium with a minimum thickness of .06" (1.5mm).
