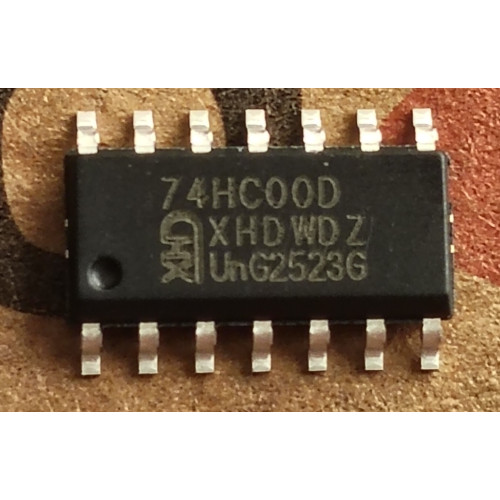

The 74HC00D is a high-speed, low-power Quad 2-Input NAND gate integrated circuit packaged in a compact SOP-14 format. This versatile device offers superior performance and reliability, making it ideal for a wide range of digital logic applications.

Salient Features and Benefits of Using the 74HC00D SOP-14, Quad 2-Input NAND Gate

• High-speed operation for efficient system performance
• Low-power consumption to reduce energy consumption
• Robust design for enhanced reliability
• Improved system speed and responsiveness
• Extended battery life in portable devices
• Reduced heat dissipation
• Easy integration into PCB designs

Versatile Applications of the Quad 2-Input NAND Gate

• Digital Counters and Timers
• Data Processing and Storage Circuits
• Arithmetic Logic Units (ALUs)
• Decoders and Encoders
• Address Decoding Circuitry

Product Specifications:

• Gate/Inverter Type: NAND Gate
• Features: Quad 2-Input NAND Gates
• Mounting Type: Surface Mount
• Input Logic Level - Low: 0.5V ~ 1.8V
• Input Logic Level - High: 1.5V ~ 4.2V
• Operating Temperature: -40°C ~ 125°C
• Supply Voltage: 2V to 6V

Package contains 2 x 74HC00D SOP-14 IC
