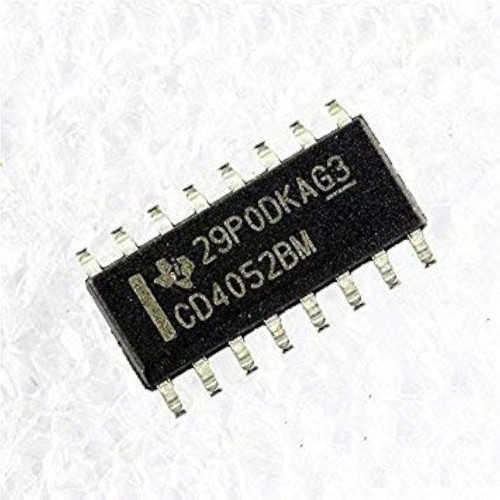

The CD4052BM analog multiplexers and demultiplexers are digitally-controlled analog switches having low ON impedence and very low OFF leakage current. These multiplexer circuits dissipate extremely low quiescent power over the full VDD - VSS and VDD - VEE supply-voltage ranges, independent of the logic state of the control signals.

Features

• Wide range of digital and analog signal levels:
  • Digital: 3V to 20V
  • Analog: ≤ 20VP-P
• Single supply range : 3V to 20V (performance degrades for VDD < 3V)
• Dual Supply range: ± 3V to ± 10V
• Low ON resistance, 125Ω (typical) over input range for VDD = 15V
• Low channel leakage of ±10pA (typical) at VDD = 15V
• Low quiescent power dissipation : 0.2µW (typical)
• Bidirectional signal path
• ESD protection HBM: 3000V, CDM: 2000V
• Pin compatible with industry standard 4051

Package contains 2 x CD4052BM
