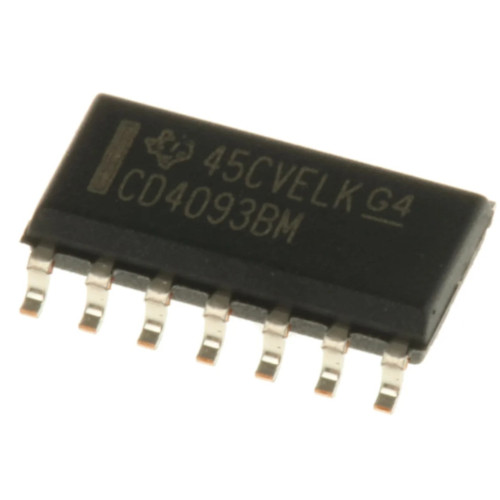

CD4093BM consists of four Schmitt-trigger circuits. Each circuit functions as a two-input NAND gate with Schmitt-trigger action on both inputs. The gate switches at different points for positive- and negative-going signals. The difference between the positive voltage (VP) and the negative voltage (VN) is defined as hysteresis voltage (VH).

The CD4093BM types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line pastic packages (E suffix), 14-lead small-outline packages (M, MT, M96 and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes).

Features

• Schmitt-trigger action on each input with no external components
• Hysteresis voltage typically 0.9 V at VDD = 5 V and 2.3 V at VDD = 10 V
• Noise immunity greater than 50%
• No limit on input rise and fall times
• Standardized, symmetrical output characteristics
• 100% tested for quiescent current at 20 V
• Maximum input current of 1 µA at 18 V over full package-temperature range, 100 nA at 18 V and 25°C
• 5-V, 10-V, and 15-V parametric ratings
• Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"

Applications:

• Wave and pulse shapers
• High-noise-environment systems
• Monostable multivabrators
• Astable multivibrators
• NAND logic

Package contains 2 x CD4093BM
