The bc547 transistor is an NPN small-signal bipolar transistor in a classic TO-92 package. It’s cheap, ubiquitous, and ridiculously useful for low-power switching and amplification. In a world obsessed with MOSFETs and op-amps, the bc547 transistor still shines whenever you need a simple level shift, a tidy LED driver, a quick sensor preamp, or a sturdy oscillator.
Think of the bc547 transistor as the MCU’s friendly bodyguard: it handles currents and voltages the microcontroller shouldn’t. It’s voltage-agnostic at the base (just ~0.7 V to forward-bias), predictable, and happy in countless roles. Also: the pinout is reasonably standard for this family—just double-check footprints.
2) BC547 Transistor Specs & Variants (A/B/C) Without the Boredom
Here’s the digest you actually need. Numbers vary by manufacturer and temperature; consult the datasheet for your exact part. Treat these as practical ballparks for a bc547 transistor:
| Parameter | Ballpark Value | Reality Check |
|---|---|---|
| Type | NPN, small-signal BJT | Complementary PNP: BC557 family |
| VCEO (max) | ≈ 45 V (family dependent) | BC546 ≈ 65 V, BC548 ≈ ~30 V |
| IC (continuous) | ≈ 100 mA | Short pulses higher; mind SOA & thermal |
| PD (at 25 °C) | ≈ 500 mW (TO-92) | Derate with temperature |
| hFE (DC gain) | Group A/B/C: low → high | A ~ low hundreds, C ~ upper hundreds (range-y) |
| fT (transition freq.) | ~ 100 MHz class | Device & bias dependent |
| VBE(on) | ~ 0.65–0.75 V | −2 mV/°C temp coefficient (≈) |

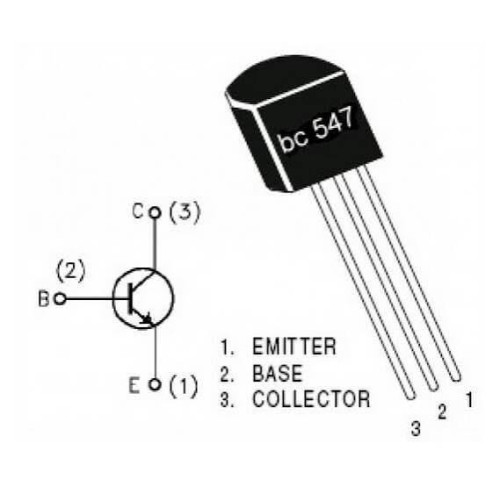

| Package | TO-92 | Mind pin order; vendors differ E-B-C vs C-B-E |
The headline difference among BC547A, BC547B, and BC547C is DC gain grouping. If you’re building a low-current preamp, the bc547 transistor in C-bin can buy you bias flexibility. If you’re slamming a relay, a B-bin is often “predictable enough” while avoiding silly over-gain that complicates saturation timing.
