A 2.54mm Foot Pitch Coding Switch DIP-4P is a 4-position Dual In-line Package (DIP) switch designed for manual circuit configuration. The "2.54mm pitch" refers to the standard 0.1-inch distance between the center of the pins, making it fully compatible with standard breadboards and 0.1" pitch perf-boards.
Key Specifications
- Pin Pitch: 2.54mm (0.1 inch), making it fully compatible with standard breadboards and PCBs
- Positions/Bits: 4 independent switch positions (4-P)
- Contact Rating: Typically 100mA DC 24V (switching) / 100mA DC 50V (non-switching)
- Contact Resistance: ≤ 20mΩ to 50mΩ max
- Mounting Type: Through-hole technology (THT) / PCB mount
Common Applications
- Breadboard Prototyping: Ideal for temporary educational circuits and testing
- Configuration Settings: Used to set device addresses, operating modes, or baud rates on hardware modules
- Hobbyist Electronics: Frequent use in Arduino, Raspberry Pi, and custom microcontroller projects

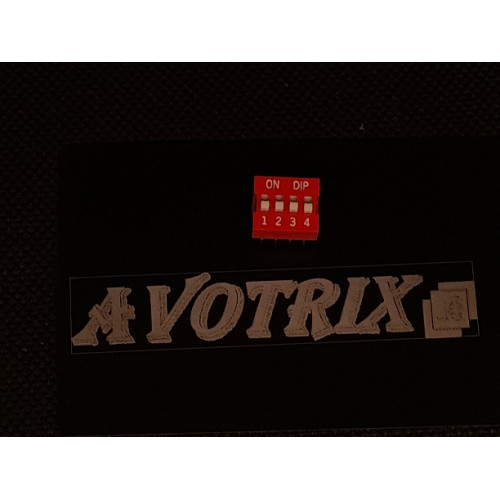

2.54mm Foot Pitch Coding Switch Dip-4P
- Product Code: 2.54mm Foot Pitch Coding Switch DIP-4P
- Availability: In Stock
-
R 18.98
- Ex Tax: R 16.50
